Optiflex MLX Video Systems

Inspection

Our products range from widefield cameras on a stand to precision CNC XYZ Staging to perform any of your inspection needs.

Measurement

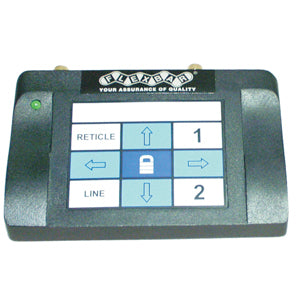

Our systems range from field of view to CNC run programs to crosshair video overlay or video edge detection.

Magnification

Flexbar supplies any magnification from 4X to 1000X and beyond. Auto focus is also available on some models.

Base Model No. MLX-2000: Camera based optical inspection and measurement system that has been globally distributed for decades. Manufactured by Flexbar in the USA, this system is available in multiple stage sizes including 8”x4”, and 12”x12”.

MLX 2000 Product Landing Page

Base Model No. MLX-3000: Adding a computer with a touch screen that allows for field of view measurements, this upgrade is commonly used when the system is in full inspection departments. The computer allows for connection your organizations computer network and a user interface that includes video edge detection. Added features include:

MLX 3000 Product Landing Page

Request An Upgrade to Your MLX Video System

Upgrade No. 18-BLF – Bottom Lighting

This additional lighting, much like any standard comparator, is recommended for improved external edge detection and is commonly featured in almost any application.

Upgrade No. 12360-UP – Upgrade light boxes to LED lights

This upgrade takes the base halogen lights and upgrades them to LED lights. LED lights allow for:

Higher color temperature;
Improved view and illumination;
Lower heat generation;
Longer light life expectancy;

Upgrade No. 18-TwinArmUp – Twin Arm Upgrade

This upgrade features the mounting of monitors and keyboard onto twin arms connected to the granite base. This allows some of the equipment to be removed from the bench top and reduces the footprint of the assembly.

Upgrade No. 18-UP2/3 – Added 3rd Axis scale

This upgrade allows for three dimensional measurement, a calibrated Z axis to combine with the X/Y Axis of the base two-dimensional inspection.

Upgrade-DXF-FOV-UP – Software upgrade to allow for DXF importing

This software upgrade is only available for systems upgraded to MLX-3000 and allows for the importing of pre-existing .dxf files for a comparative style of inspection. This includes a live error whisker display for part violations of the original DXK tolerance zones.

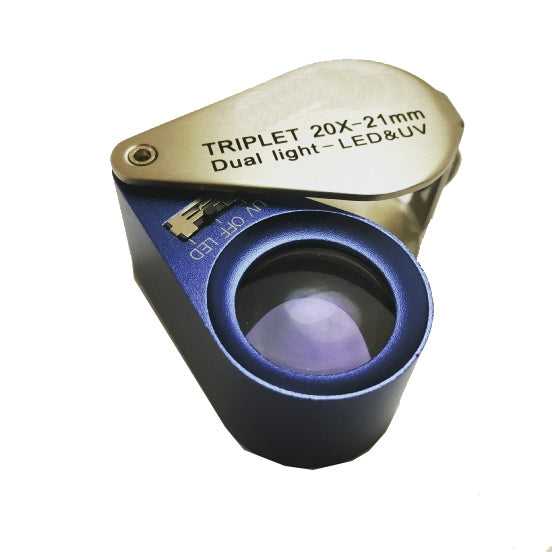

Flexbar offers a line of hand-held optical inspection scopes, hand-held and stereo microscopes as well as our expanded line of video inspection and measurement systems covering a wide range of industry applications including Aerospace, Automotive Electronics, Fiberoptics, Medical Manufacturing, Plastics, Stamping and much more.

Flexbar also offers free part application analysis. Simply fill out our application solver form and our engineer will get back to you shortly.
