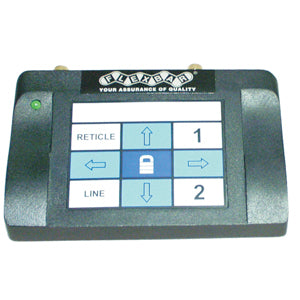

Digital Crosshair Generator

$849.00
SKU 18-18842-MX

New Model Features 5 Built-In Reticle Patterns Plus 5 Built-In Line Types.

Fully Adjustable Reticles on a Live Image For Precise Positioning with Optics.

Reticle Types
  • Single Crosshair
  • Dual Crosshair
  • Box
  • Crosshair with 2 sizeable centered circles
  • Fixed in the Center Single Crosshair
Additional Features
  • Convenient "Hold" or Lockout Capability
  • Digital Circuitry for Maximum Stability
  • Digital Memory of Reticle Position and Line Type when Powered Off
  • Accommodates both Composite and S-Video
  • Operates in Color and BW
  • Phase Locked to Camera
Specifications
  • Signal: 7-1.4vp-p @75 ohms (NTSC, PAL, EIA, CCIR)
  • Video Input: RS170, Composite and S-Video
  • Video Output: Unity Gain, Loop Through
  • Power Input: 12V dc  400ma, 110 VAC Standard (UL Approved)
  • Dimensions: (w) x (h) x (l) 5.75" x 4.25" x 1.375" (includes rear connectors)
  • Weight: 0.5lbs
  • CE Certified
Line Types
  • Solid Black Lines
  • Dashed Black Lines
  • Solid White Lines
  • Dashed White Lines
  • No Lines
