Taper Measurement
Request Quote

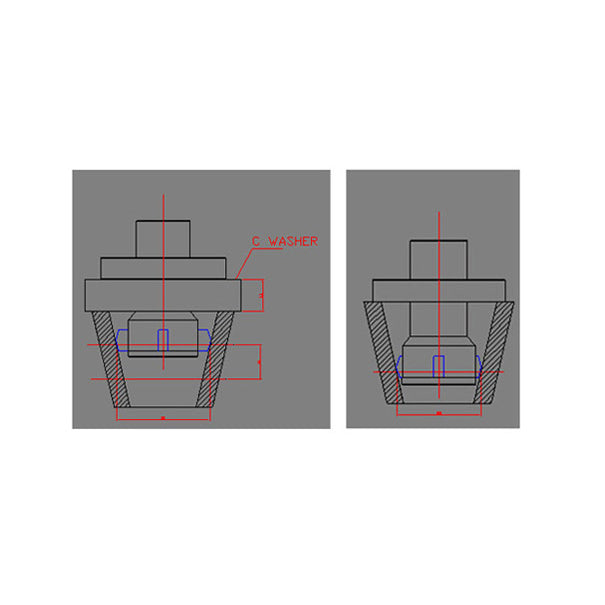

To design the Anvil head for Slot measurement, the following information is required:
- Entry Diameter
- Length of Component
- Datum point diameter
- Minor diameter of component
- Length of datum point
