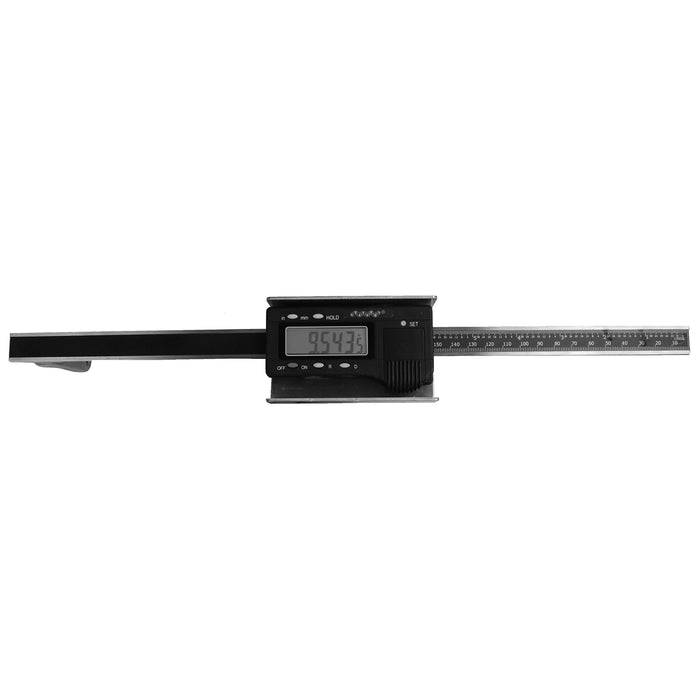

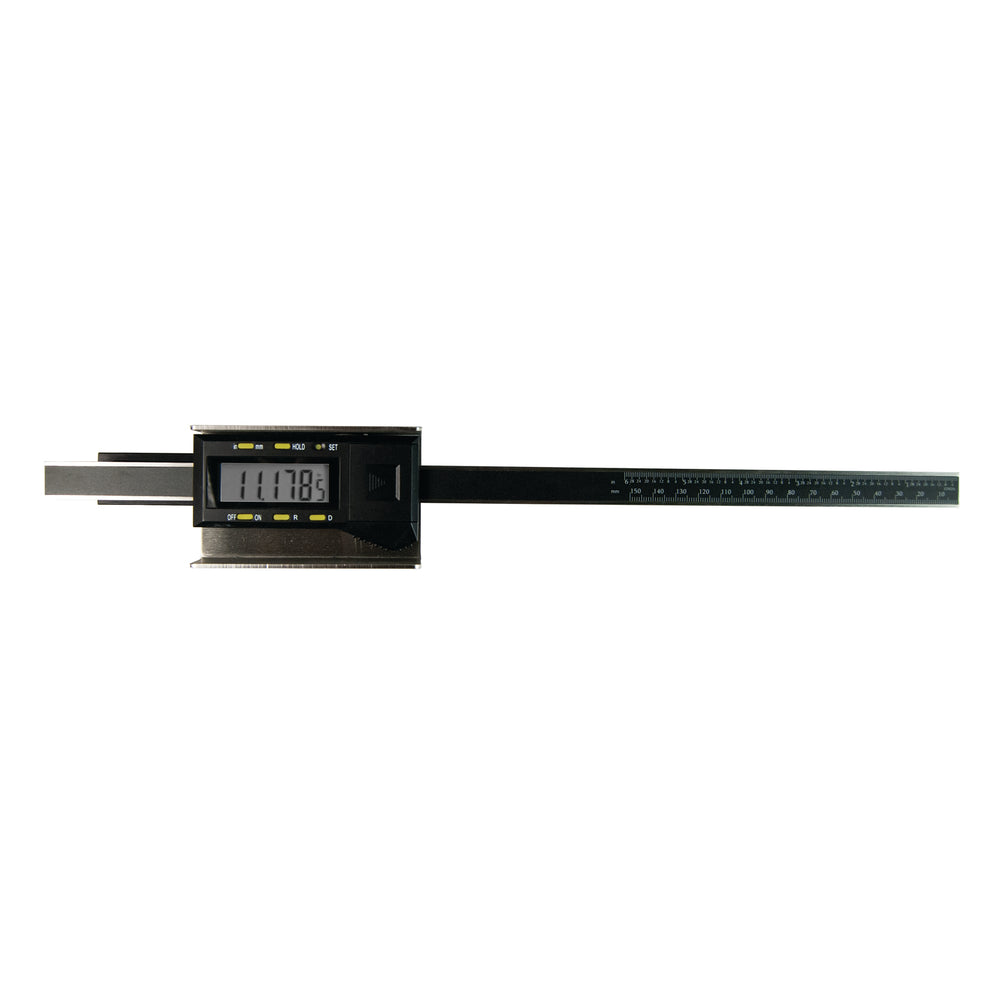

Flexbar Large I.D. Measurement Caliper

SKU 70062

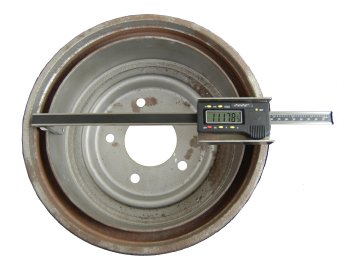

A Quick and Easy Tool for measuring Internal Diameters of Large Pipes, Drums and Other Dimensions ranging from 5" (125mm) to 15" (375mm). Ideal for determining out-of-round conditions.

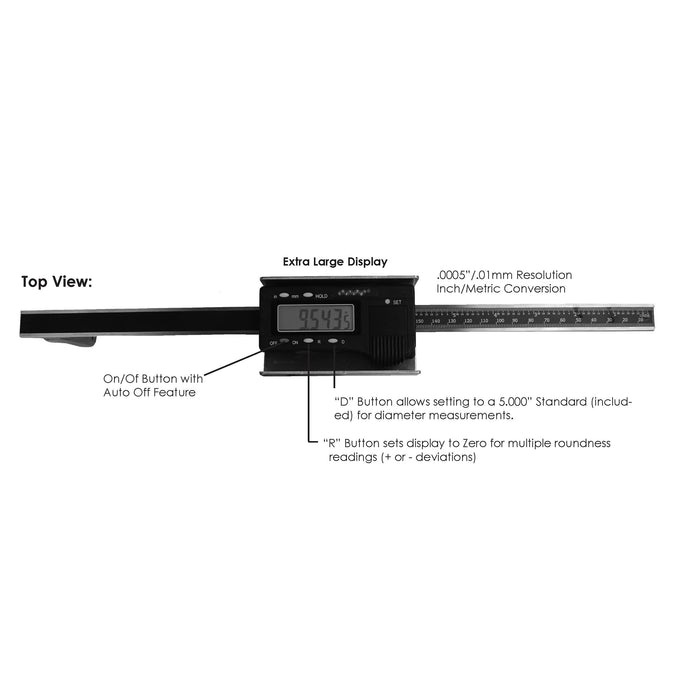

  • Extra Large Display
  • On/Off Button with Auto Off feature
  • .0005"/.01mm Resolution
  • Inch/Metric Conversion
  • "D" Button allows setting to a 5.000" Standard (included) for diameter measurements.
  • "R" Button sets display to Zero for multiple roundness readings (+ or - deviations)

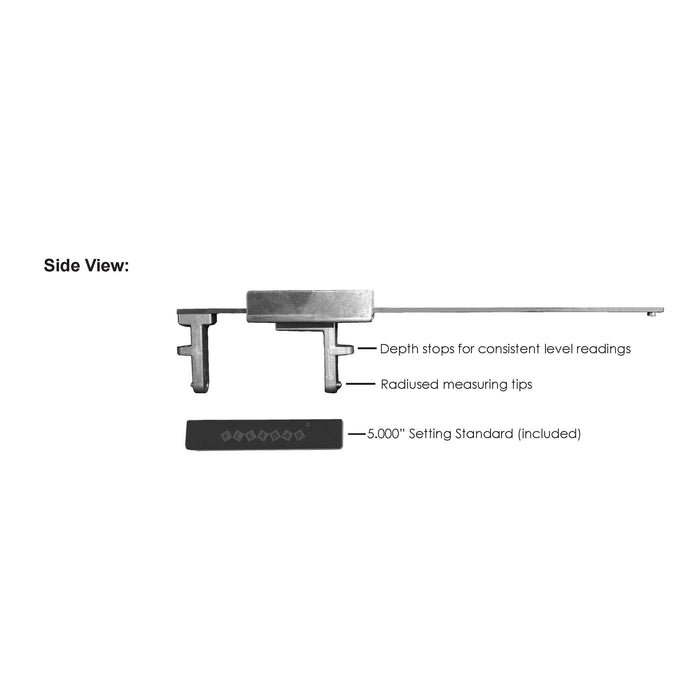

  • Depth stops for consistant level readings
  • Radiused measuring tips
  • 5.000" setting standard (included)
