Extra-Wide Visorguard Universal

$229.00
SKU 13048

Extra-Wide Visorguard Universal for Larger Machines Such as Multi-Spindles

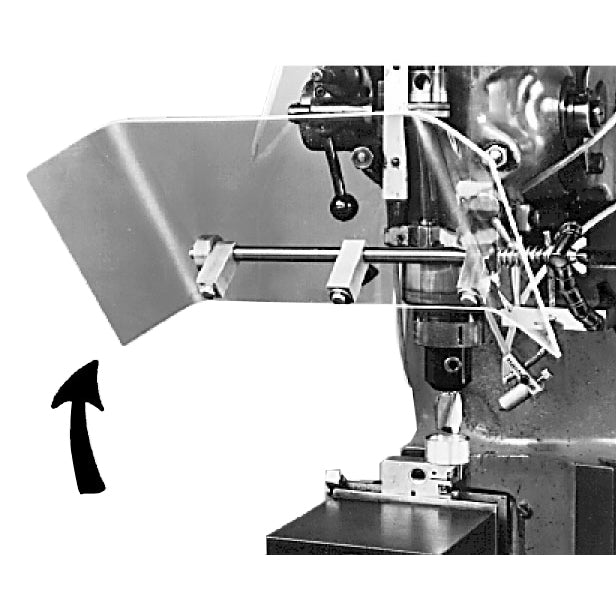

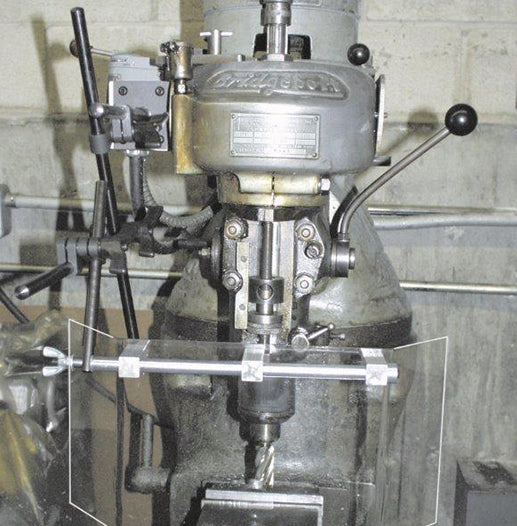

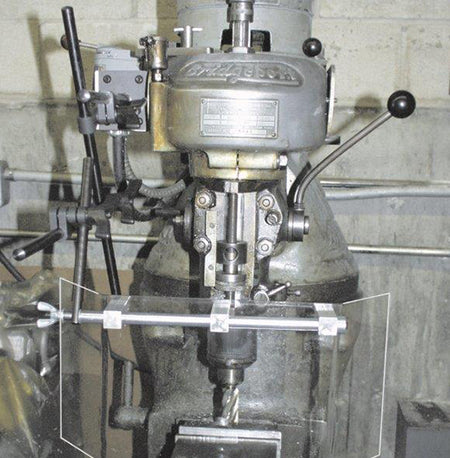

Unique universal positioning design is fully adjustable. Visorguard shield is mounted and supported by a series of heavy duty arms and swivel clamps thus allowing the operator to "custom fit" each guard as to overall length, angle and position of shield. Wing-shaped Visorguard shield protects workers at adjacent machines.

Long Reach from Headstock Mounting Plate/Post is Adjustable to 36"

  • Mounting plate with 4" x ½" post - just drill and tap into headstock ... supplied with four cap screws
  • 2 each 15" x ½" arms (24" arms available upon request - phone or fax).
  • 3 each ½" x ½" heavy duty swivel clamps with extra-large wing style locking knob
  • 24" x 8" high Lexan Visorguard shield assembly with 6" attachment post & coupling
