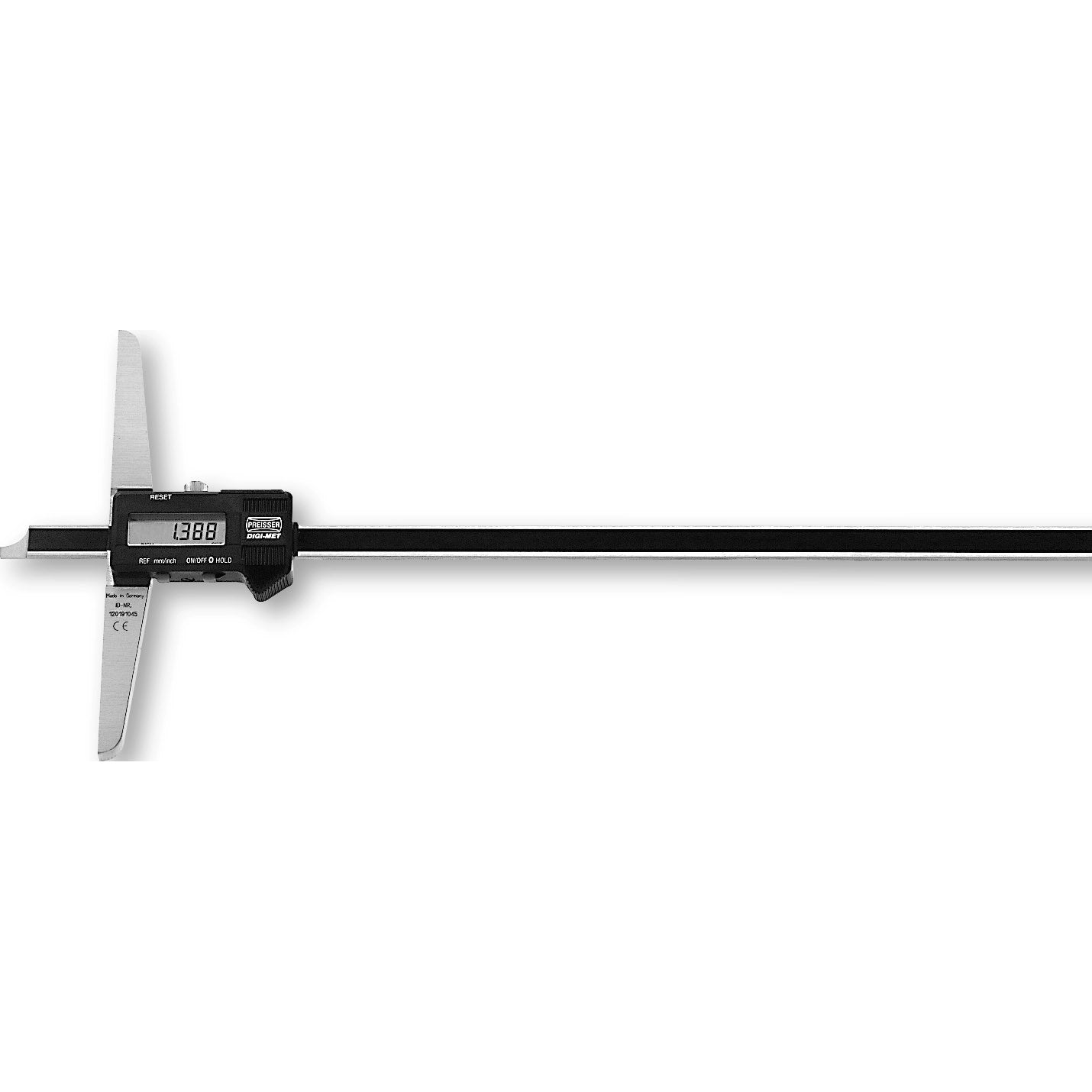

DIGI-MET Straight Beam Depth Gage

$849.00
SKU 18210

Available in 3 ranges 0-8", 0-12" & 0-20"

Straight Beam Style Depth Gage

Details

Resolution: .0005"./.01mm
Repeatability: 1 digit 10µm/.0005"
Precision Made of stainless steel - measuring surfaces hardened and lapped.

Features

Gage Features:

  • Non-contacting linear SYLVAC Swiss measuring system
  • OPTO RS232C SPC output
  • One cable fits all DIGI-MET instruments
  • Extra-Large high contrast LCD display for easy reading (6mm/.236")
  • Direct Inch/metric conversion
  • On/off switch
  • Hold function - freezes display for later viewing
  • Zero setting at any point
  • Easily configured for SPC data output
  • High speed measuring/tracking: 60"/second
  • Includes Wooden Case
Dimensions

Brochure

Digi-Met Depth Gage Brochure
