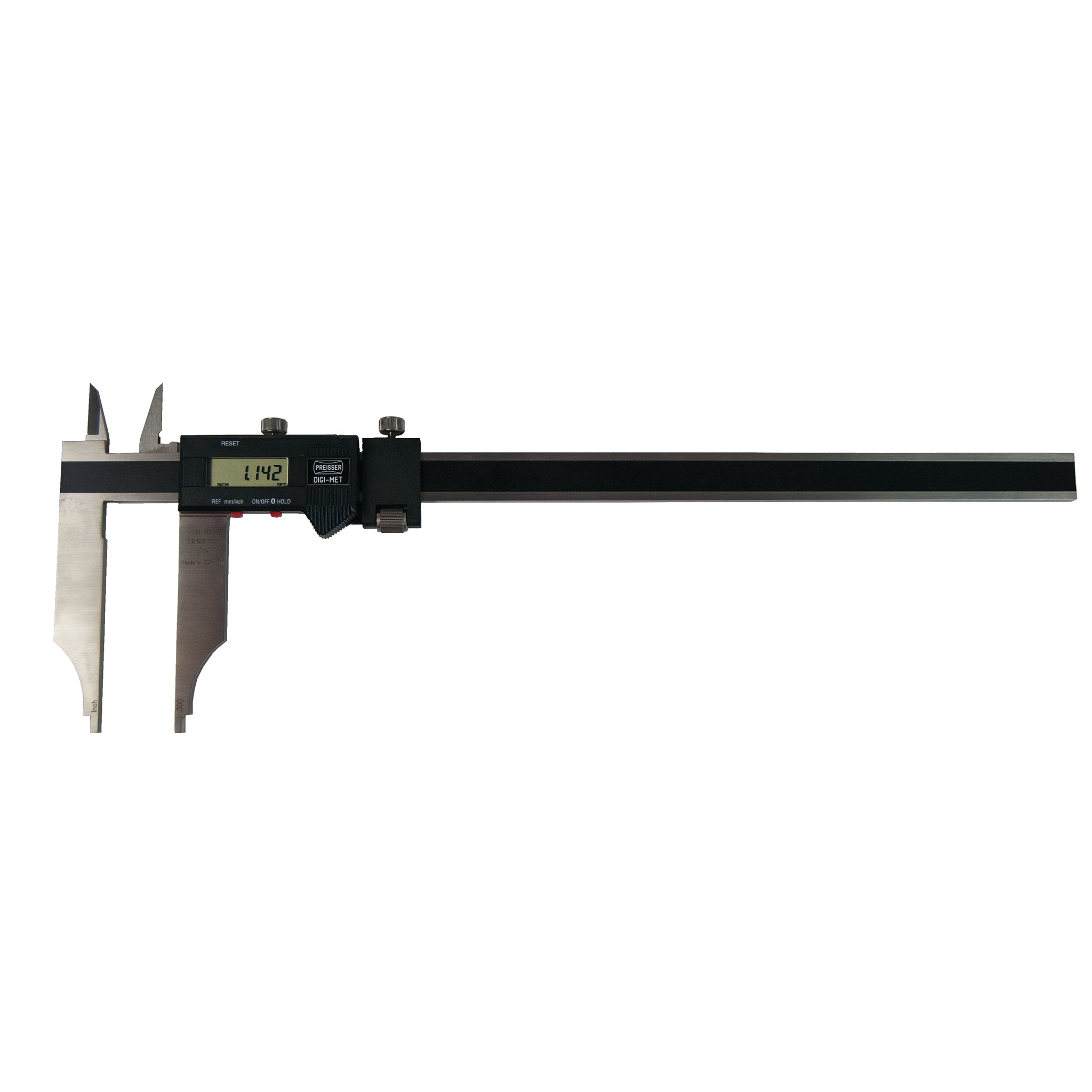

DIGI-MET® Cross-Jaw Electronic Caliper

$1,180.00
SKU 18202

With cross jaws for direct inside measurement.

  • Resolution: .0005"/.01mm
  • Fine adjustment and locking screws

Made from hardened stainless steel with ground and lapped measuring surfaces.

Details

Features:

  • Non-contacting linear SYLVAC Swiss measuring system
  • OPTO RS232C SPC output
  • One cable fits all DIGI-MET instruments
  • EXTRA-LARGE high contrast LCD display for easy reading (6mm/.236")
  • Direct inch/metric conversion
  • On/Off switch
  • Hold function- freezes display for later viewing
  • Zero setting at any point
  • Easily configured for SPC data output
  • High speed measuring/tracking: 60"/second
  • Includes wooden case.
Dimensions

Measuring Range: 0-12" (0-300mm)
Jaw Type: Cross Jaw
Overall Accuracy: .001"
Length of Bottom Jaws: 3.5"
Length of Top Jaws: 1.3"
