Digi-Bascom Universal Measuring Tool

Save 50%
$2,295.00
$1,147.50
SKU 19380

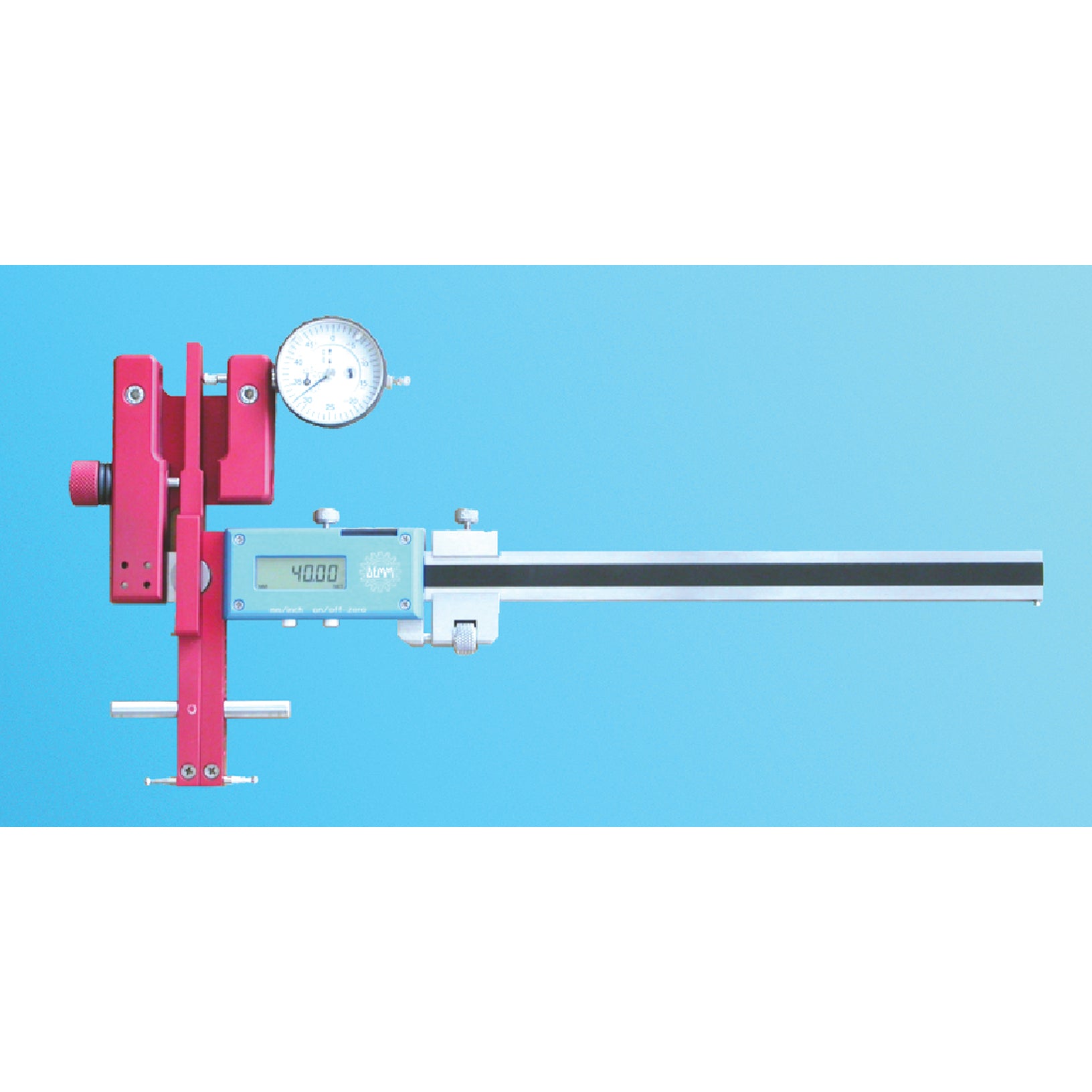

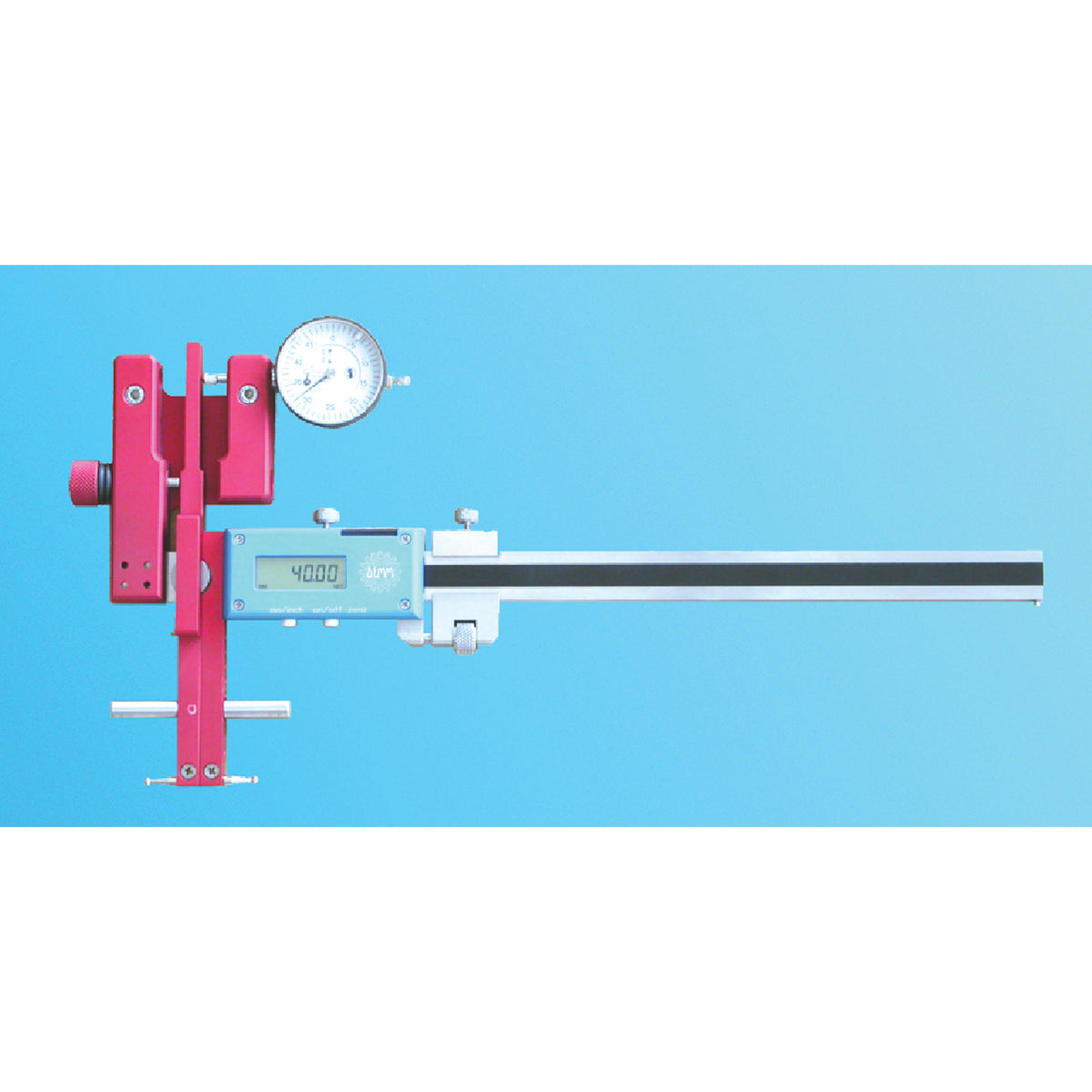

Flexbar DIGI-BASCOM Universal Measuring Tool

Highly Accurate Multi-Use Sliding Gage with Micrometric Adjustment Carriage Mechanism with Dial Gage (Inch or Metric)

Available in:

20-200mm/.800-8"

&

24-300mm/.95-12"

Features

Features:

  • Manufactured from special alloy and stainless steel
  • Sylvac Digital Electronic Scale with RS232 output
  • Can be set up for both inside and outside measurements using a range of interchangeable ball or point contact ends
  • Gage is easily zeroed and set using any ring gage in the measuring range
  • All Calipers come in fitted wooden case.
Details

Each gauge is equipped with two cylindrical supports that can be applied to the jaws at 5mm. intervals On the moveable jaw blade it can be replaced by a special support (included) that makes the instrument more stable and the reading more precise.

Applications

Applications Include Inside and Outside measurement of:

  • Diameters
  • Gear Tooth
  • Threads
  • Grooves
  • V Guides
Specifications

20-200mm/.800-8":

  • Capacity (mm): 20-200
  • Capacity (inch): .800-8"
  • Guide Section: 18 x 4mm
  • Graduations: .0005"/0.01mm
  • Tolerance: .001"/0.02mm

24-300mm/.95-12":

  • Capacity (mm): 24-300
  • Capacity (inch): .95-12"
  • Guide Section: 22 x 5mm
  • Graduations: .0005"/0.01mm
  • Tolerance: .001"/0.02mm

*Model includes a .0005" reading dial indicator. Metric indicator available. Add -M to the model no.
