Flexbar Compact Video Borescope Inspection System

Save 52%
SKU 18847

New in the Box! Old Style Borescope Inspection System at Discounted Price! Comes with a one year warranty.

Unit comes with Mini-Camera Lens and borescope C-Mount adapter. Coupler and fiber light (13285 & 13283) sold separately.

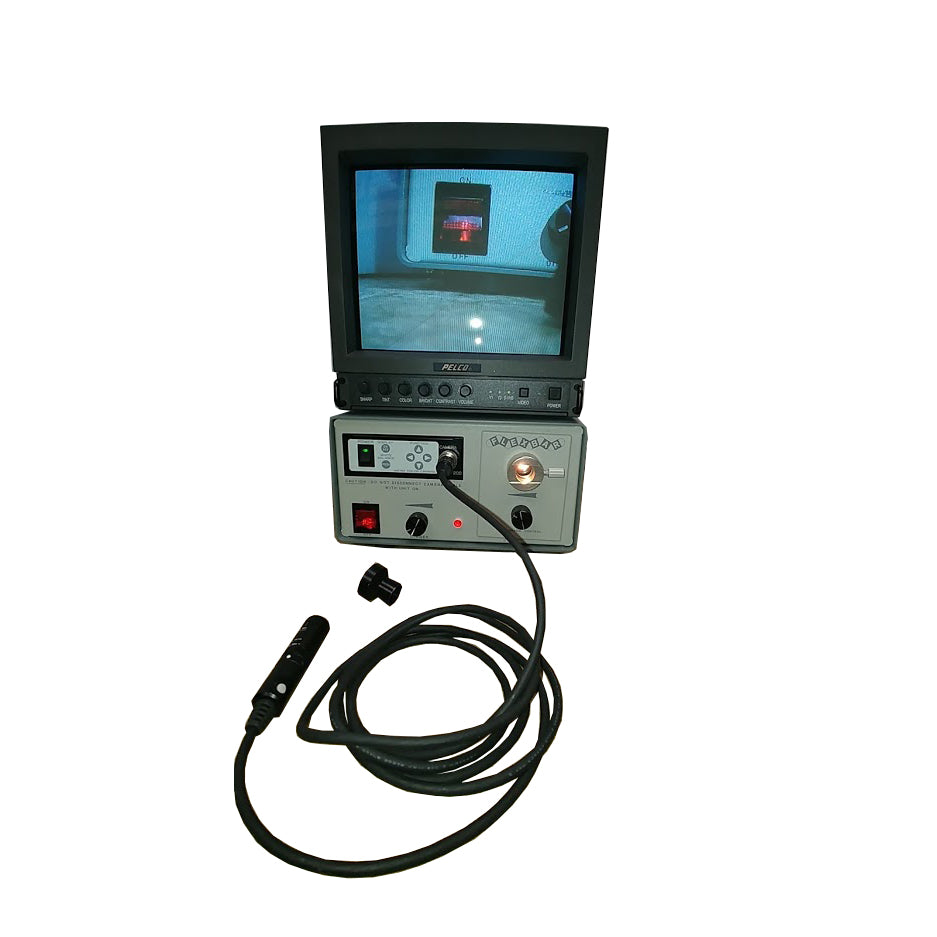

A versatile, high resolution (470 lines) color imaging system usable with all Flexbar rigid and flexible inspection borescopes as well as other brands. Features a remote micro-sized camera head  with a C-Mount coupling thread which allows quick and easy attachment to all C-Mount style borescope couplers (fixed or focus-able). Camera head and system can also be used interchangeably with the Flexbar Video Micro-Zoom System and for hand-held macroscoping imaging.


  • Main control console includes built-in 1/2" CCD Color Camera Unit, with camera controls, built-in 150 Watt Fiberoptic Illuminator with separate dimmer and diaphragm controls, main power switch, rear storage compartment, built-in power supply.
  • High resolution 9" color video monitor
  • 1/2" CCD Color Camera features automatic lighting (shutter) control, low 5 Lu minimum illumination, 470 lines resolution S-VHS and NTSC outlets, auto/manual white balance, remote micro camera head
  • Camera head is encased in light-weight rugged housing with C-Mount thread at end (attaches to borescope couplers).


  • Main Console: 8 3/4" W x 6" H x 13 1/2" D
  • 9" Color Monitor: 8 3/4" W x 8 7/8"H x 13 1/2" D
  • Camera Head: 3 1/2" L x .915" Diameter
  • Camera Cable: 6 feet long
