Ultraflex 5000 Series "Granite Z"
Ultraflex 5000 Series "Granite Z"

Ultraflex 5000 Series "Granite Z"

Request Quote

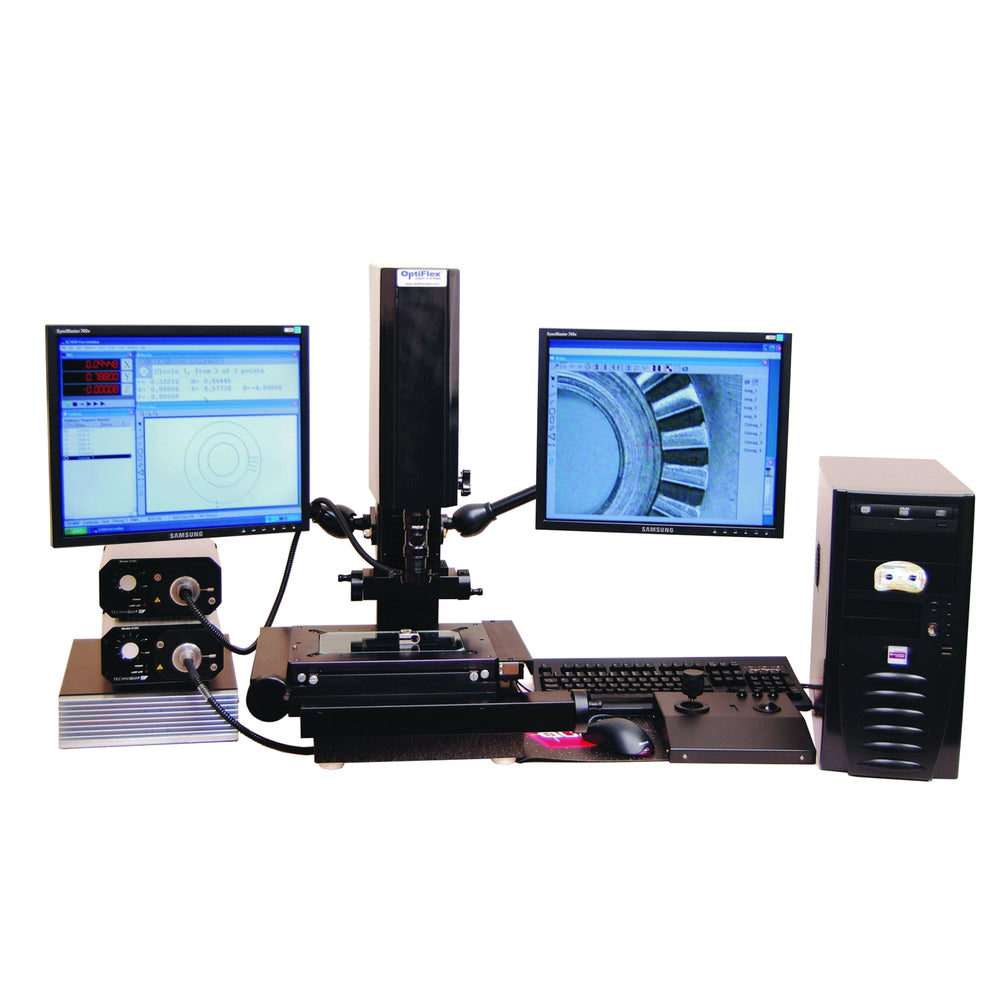

Flexbar introduces UltraFlex, its newest and most powerful software-based series of video measurement and inspection systems. UltraFlex systems combine high accuracy measurements, repeatable edge detection, video documentation and electronic communications into a powerful inspection tool. System packages available in manual, motorized and CNC controlled formats. All systems available in 8" x 4" (200mm x 100mm) and 12" x 12" (300mm x 300mm) formats.

The Ultimate Inspection Tool - The UltraFlex has been designed for the shop floor or any inspection lab requiring quick and easy operation. By using our On-Screen Measurement Tools, Repeatable Video Edge Detection, and Live Image Overlay operators of any skill level will measure and inspect parts quickly, accurately, and efficiently.

System Features

System Features:

  • Solid granite frame guarantees strength, accuracy and stability
  • Superb full-color high resolution image with zoom optics
  • Precision 4 x 8 crossed roller bearing stage (larger size available in 12 x 12 format)
  • Systems supplied with either 2 micron or 1 micron high accuracy scales
  • Motorized and CNC control of X, Y, and Z axes
  • Standard magnification 42x-276x with option affordable auxiliary lenses to increase or decrease magnification
  • Programmable lighting included
  • Z-axis measurement with auto-focus available on 5300
  • Adjustable lens mount dovetail on granite Z column
  • Tooling holes on stage plate for fixturing
  • LED lighting available
  • Powerful Pentium computer running Windows XP included
  • Easily upgraded from manual to motorized/CNC control
Software Features

Software Features:

  • Easy-to-use icon driven Quadra-Chek 5000 software
  • Repeatable Video Edge Detection tools which remove operator uncertainty with sub-pixel accuracy
  • Powerful feature recall, construction, and skew features
  • Combine on-screen measurements with stage-based measurements
  • Manual part programming
  • Tolerancing with pass/fail results
  • Automatic data collection with customized report generation
  • Real-time link to SPC
  • Image capture and annotation
  • E-mail and video print for documentation
  • Live image overlay comparison with CAD import/export
  • No hidden costs for report generation capability
  • Software upgrades available periodically
  • Quadra-Chek products are the industry standard worldwide
Specifications

For pricing and application consultation, Call us at (800)879-7575 or fill out our contact form

Brochure
