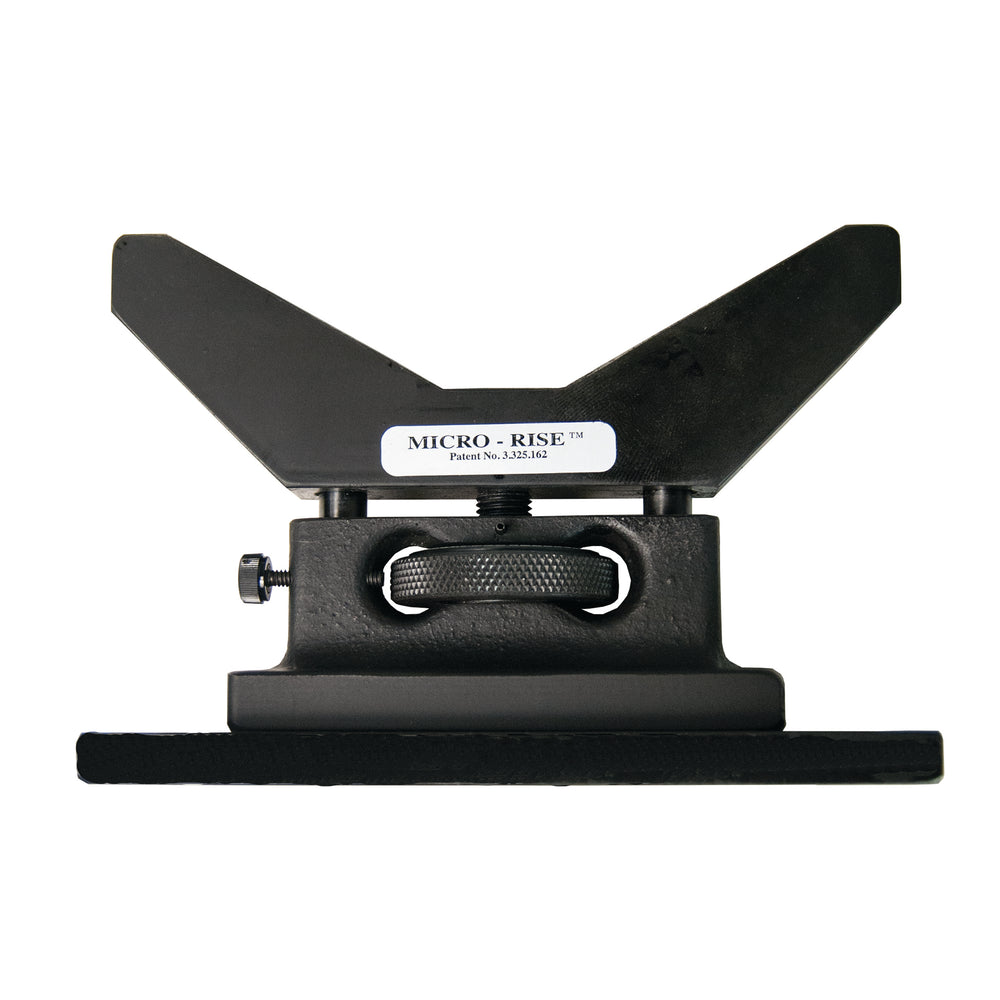

Extra-Large Micro-Rise

$1,095.00
SKU 16513

High Precision Adjustable V-Blocks For Large Diameter Applications 5" to 10" Capacity

Features
  • Hardened and ground anvils support up to 1,000 lbs.
  • Wide angle "V" accepts 3/16" to 5" diameters.
  • Top flats ground parallel to base. Can hold wide, flat parts. Narrow flats may be held on a parallel across top.
  • Vibration lock, (position lock), prevents creeping.
  • Insures solid support without deflection.
  • ½" total rise of "V", .050 per revolution. Dial graduated in increments of .001".
  • Available in metric screw and dial.
Dimensions
