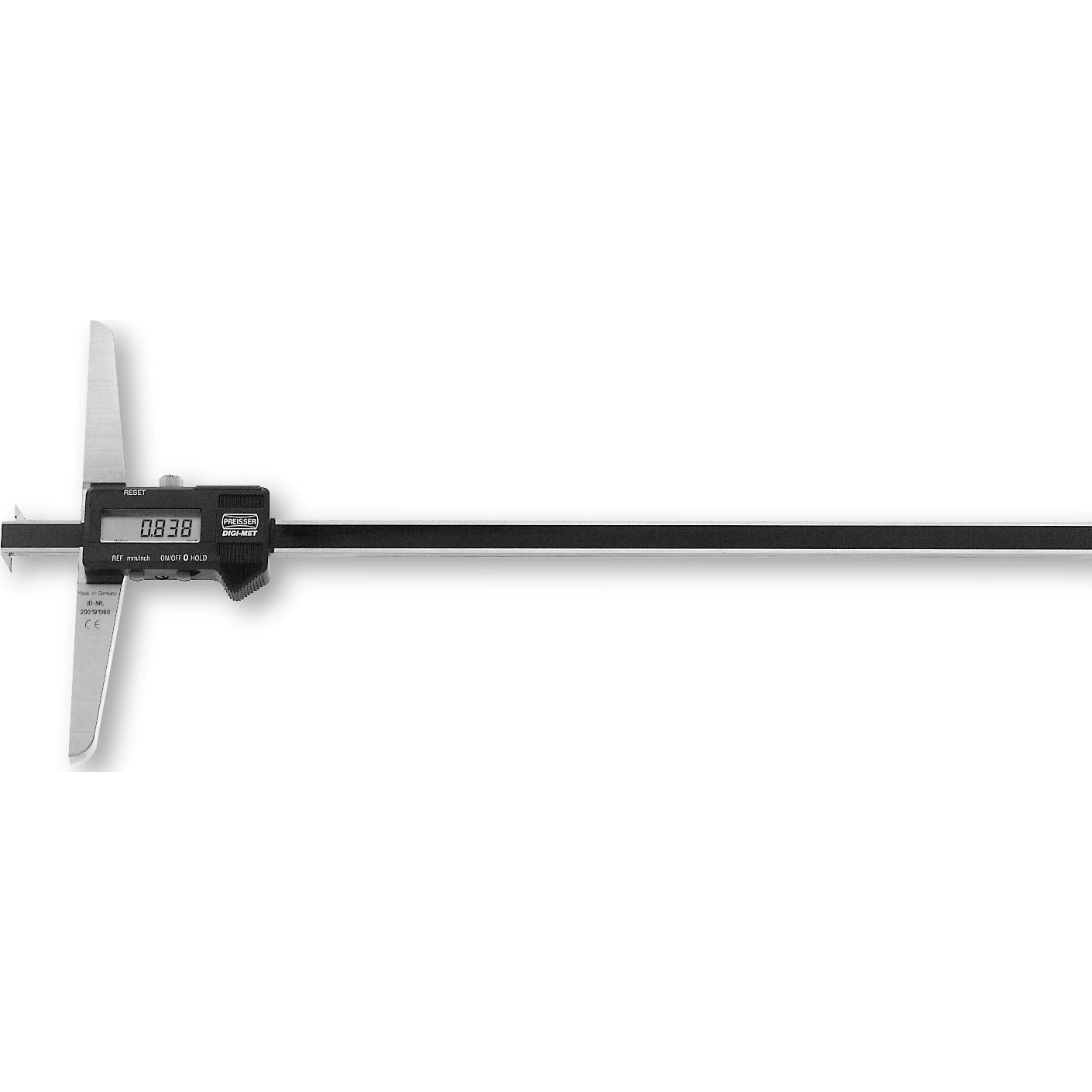

DIGI-MET Offset Legs Depth Gage

Available in 3 ranges 0-8", 0-12" & 0-20"

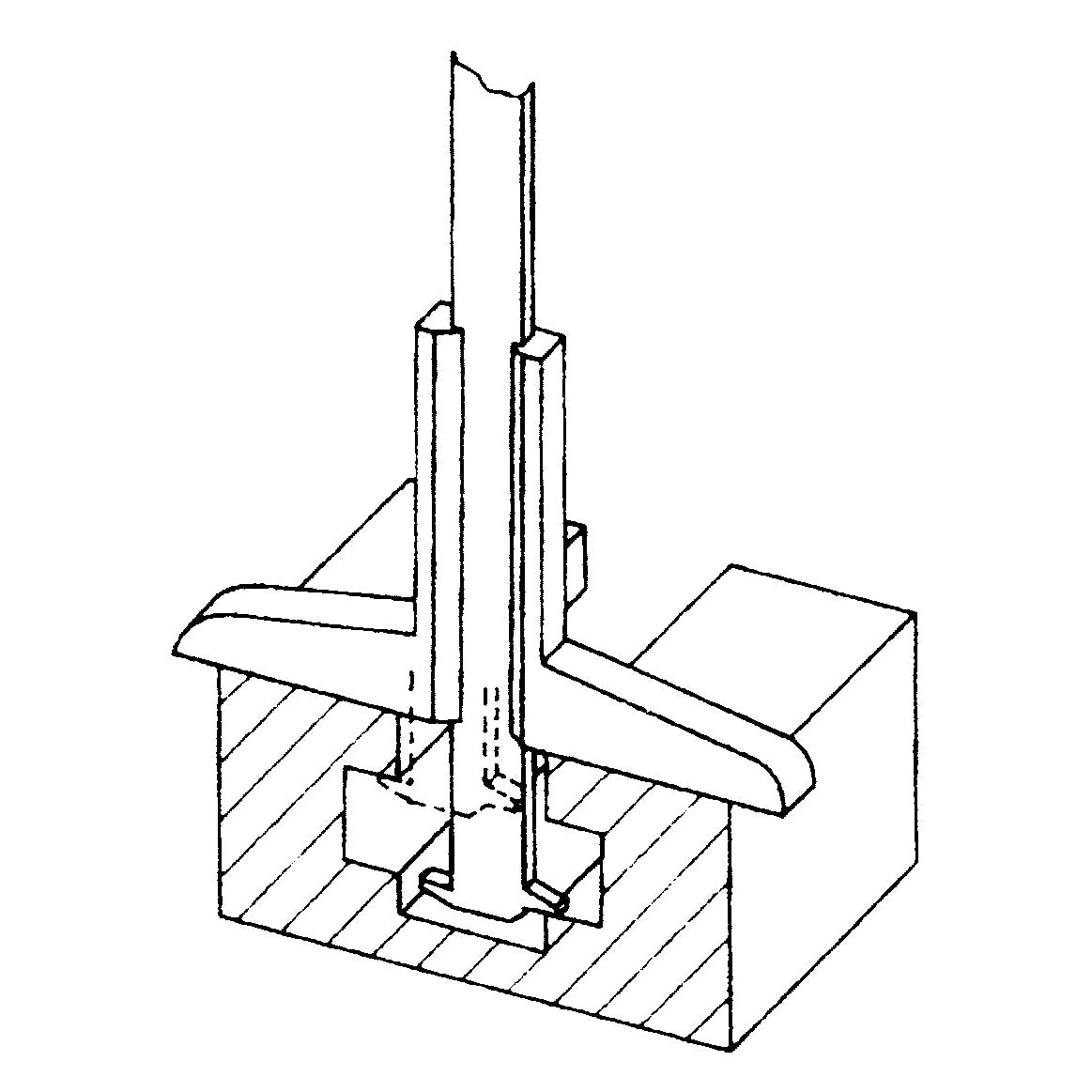

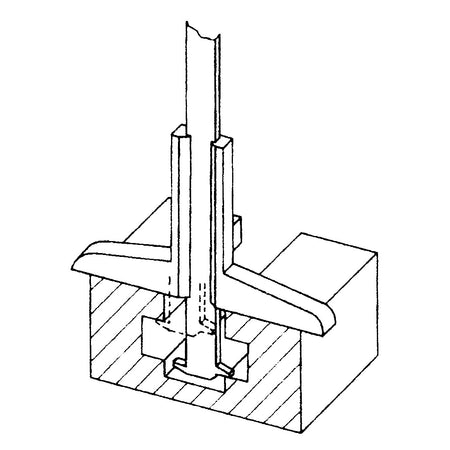

Offset Style Depth Gage

Details

Resolution: .0005"./.01mm
Repeatability: 1 digit 10µm/.0005"
Precision Made of stainless steel - measuring surfaces hardened and lapped.

Features

Gage Features:

• Non-contacting linear SYLVAC Swiss measuring system
• OPTO RS232C SPC output
• One cable fits all DIGI-MET instruments
• Extra-Large high contrast LCD display for easy reading (6mm/.236")
• Direct Inch/metric conversion
• On/off switch
• Hold function - freezes display for later viewing
• Zero setting at any point
• Easily configured for SPC data output
• High speed measuring/tracking: 60"/second
• Includes Wooden Case

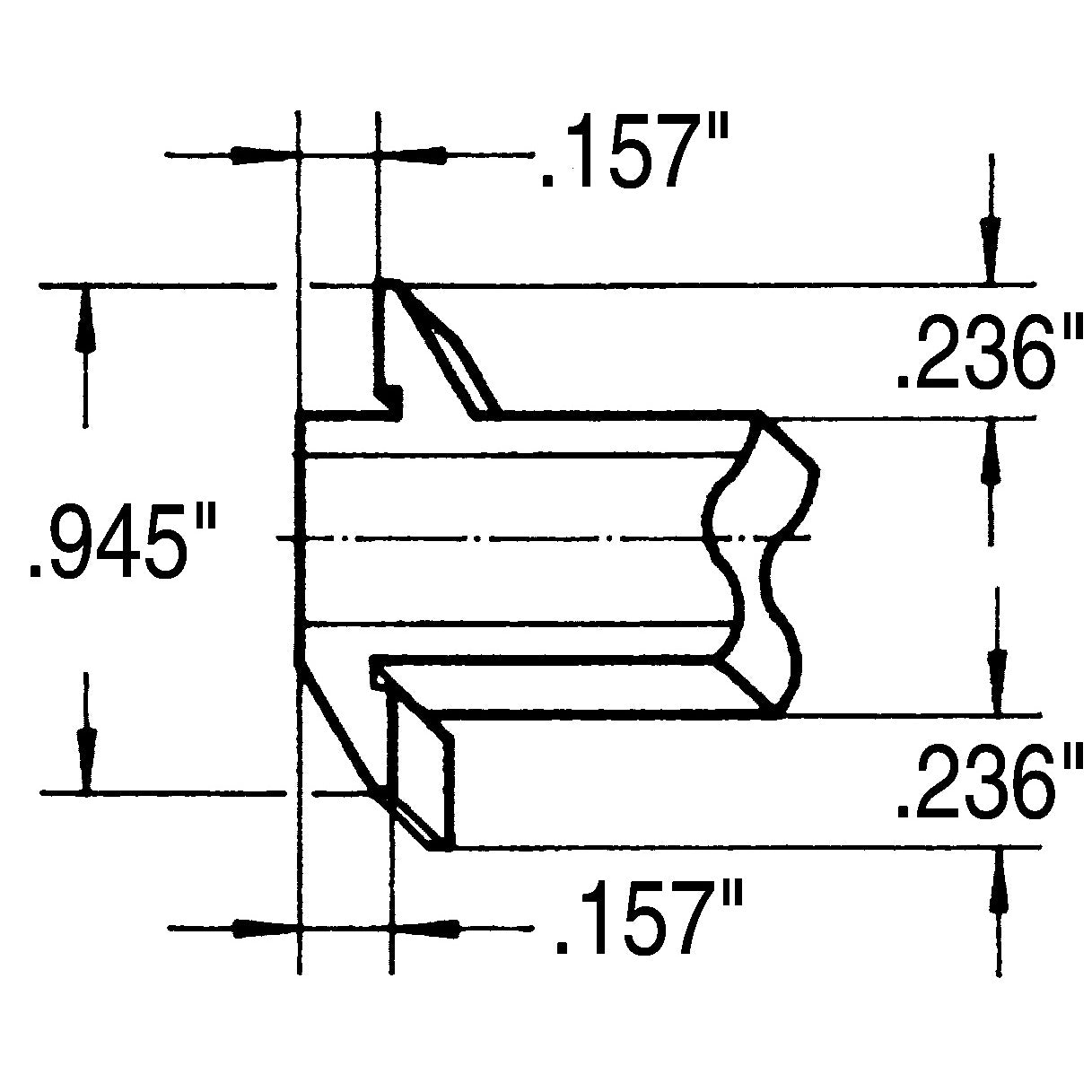

Dimensions

Brochure

Digi-Met Depth Gage Brochure
