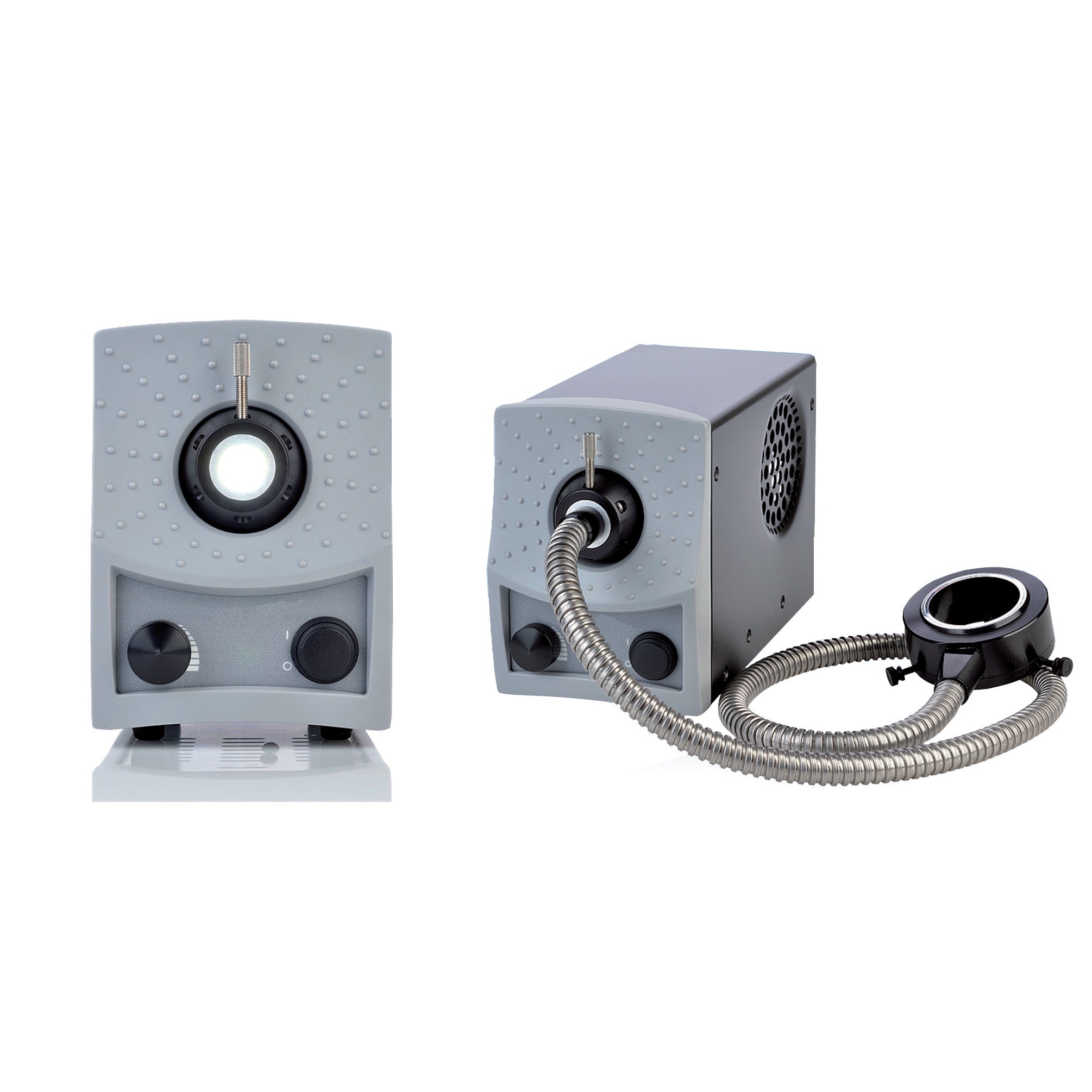

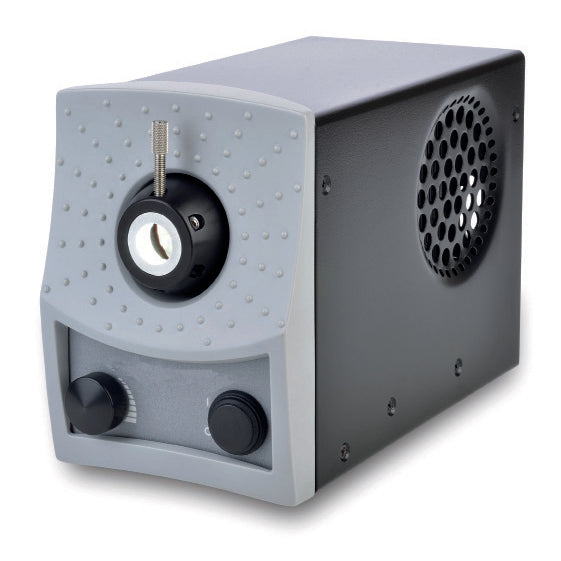

LED Powered Fiber Optic Illuminator

SKU 12360

Daylight Color Temperature, Wide Angle, High Intensity, Optimized for Large Fiber Bundles. Comes with Standard 15mm (.590") Nosepiece, Dimmable, Minimum 65 CRI, Multichip Design, CCT Range 5000-8500


Designed and manufactured in U.S.A.

Now - A High Output, Long Life, Energy Efficient Light Source Offering Optimal Performance Similar to Higher Consumption Halogen Illuminators. Features Precision Engineered Cooling System.

  • 1000 Lumen Light Output into 9mm fiber bundle
  • Small footprint (Dimensions below)
  • Heat pipe technology for superior cooling
  • Current/voltage limited for long life
  • Consistent color temperature
  • Linear light intensity control with continuous dimming
  • Quick change nose pieces available to accept virtually any light guide
  • Stackable housing suitable for mounting in space constrained applications
  • Universal power input
Industrial Applications
  • Microscopes and Video Microscopes
  • Borescopes
  • Industrial Imaging (Machine Vision)
  • Custom process and inspection equipment
  • Wire Bonders & Laser Welding
Technical Data
  • Long Life (25,000 hr) eliminates well over 100 lamp replacements
  • High Brightness LEDs
  • Precision Molded lensing assembly with anti-reflective coatings
  • Specifically designed for borosilicate fiber bundles
  • Less than 25% the energy consumption of standard 150W   halogen
  • Lower energy consumption enhances safety & reliability
  • 1 Year Warranty
  • Over temperature protection and dual fuse protection
  • ROHS Compliant
  • CE and UL/CSA pending
